Subaru Outback Fuse Box Diagram. Subaru Outback (2006) fuse box diagram Auto Genius Posted on 10 September 2017 25 March 2020 by admin Fuse Layout Subaru Outback 2015-2019 Cigar lighter (power outlet) fuses in the Subaru Outback are the fuses #2 "12V SOCKET" and #7 "CIGAR" in the Instrument panel fuse box

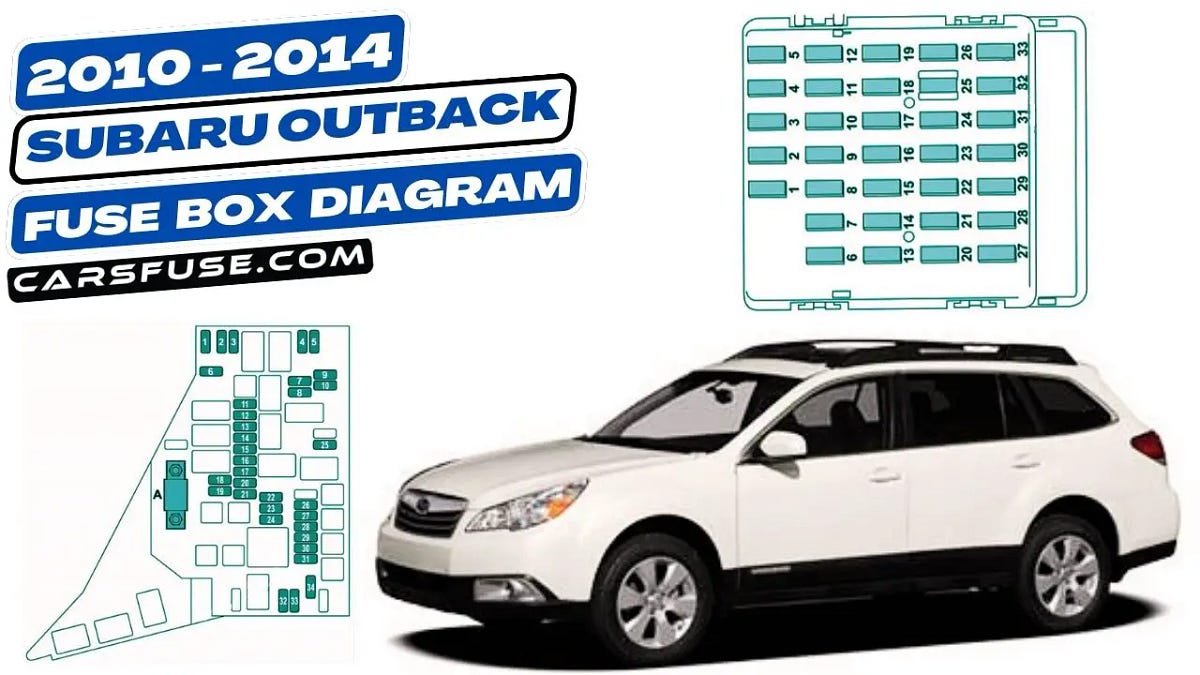

Main Fuse Panel Located in the Engine Compartment s12ab02 diagram Subaru Outback (2013 - 2014) - fuse box diagram Year of production: 2013, 2014 Fuse panel located in the passenger compartment Fuse Ampere rating [A] Circuit 1 15 Trailer hitch connector 2 20 Rear power window (left side) 3 20 Power window (driver's side) 4 7,5 Navigation system, Front wiper deicer, Moonroof 5 7,5 Combination meter 6 7,5.

2015 subaru outback fuse box diagram Subaru Outback Forums

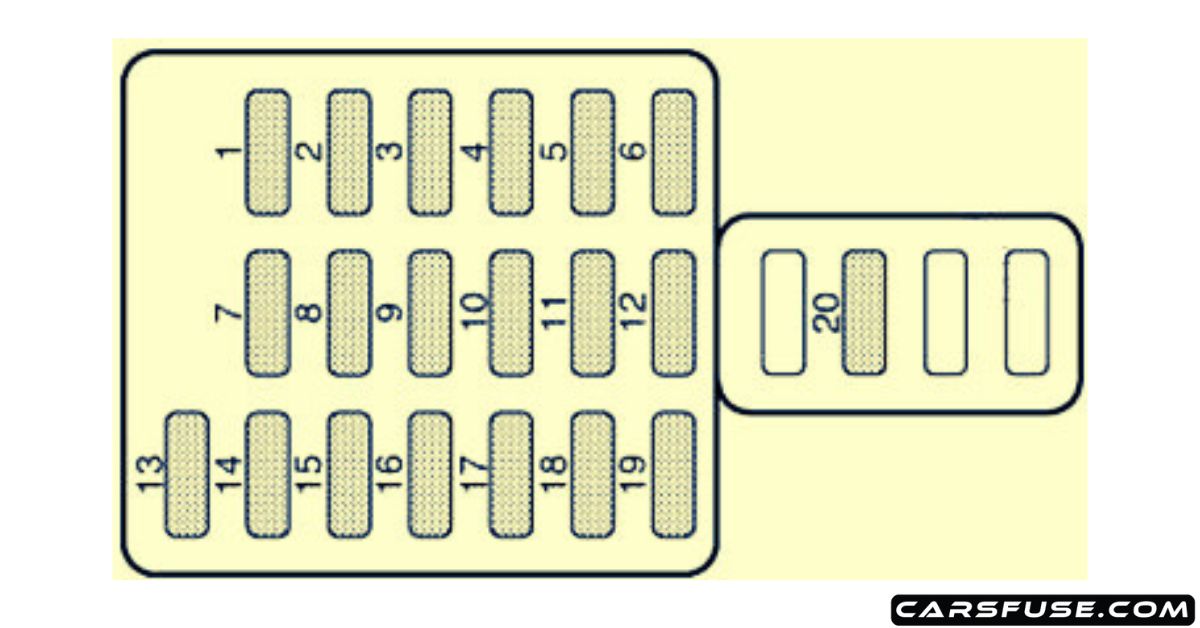

Fuse Layout Subaru Outback 1999-2004 Cigar lighter (power outlet) fuses in the Subaru Outback are the fuses #4 (Cigarette lighter) and #20 or #21 (Accessory power socket) in the Instrument panel fuse box. 2019 2.5i,2.5i premium,2.5i limited,2.5i touring,3.6r limited,3.6r Touring Subaru Outback fuse box diagram Fuse panel located in the engine compartment diagram

[DIAGRAM] 2010 Subaru Outback Fuse Box Diagram YouTube. 2019 2.5i,2.5i premium,2.5i limited,2.5i touring,3.6r limited,3.6r Touring Subaru Outback fuse box diagram Fuse box diagrams 2020 Outback Outback,Outback Premium,Outback Limited,Outback Touring,Outback Onyx Edition XT,Outback Limited XT,Outback Touring XT Fuse box diagrams 2019 Outback 2.5i,2.5i Premium,2.5i Limited,2.5i Touring,3.6R Limited,3.6R Touring

Fuse Box Diagram Subaru Legacy / Outback (20202021). Year of production: 2015 All Subaru Outback schemas On this page: Fuse panel located in the passenger compartment; Fuse panel located in the engine compartment; Fuse panel located in the passenger compartment Posted on 10 September 2017 25 March 2020 by admin
